Product Details:
|
| Rated Voltage Range: | DC12-24V | Output Current: | 5A |
|---|---|---|---|
| Output Power: | 60/120W | Induction Distance: | ≥5cm |
| Function: | ON/OFF/CCT/Dimmer | Dimension: | 107.96x43.7x15mm |
| Sensor Material: | Plastic | Approval: | CE |
| High Light: | Bathroom CCT PIR Motion Sensor Switch,Ir PIR Motion Sensor Switch,CCT Ir Sensor Controller |
||

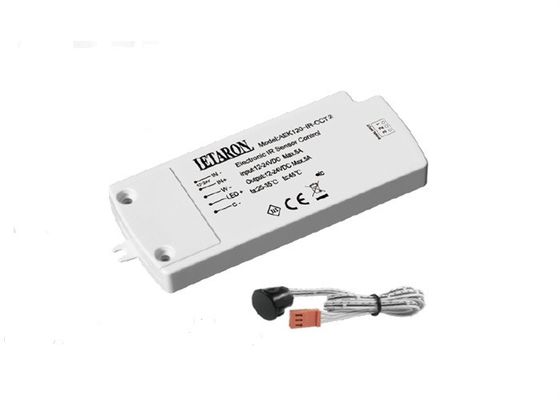

CCT Adjustment IR Sensor Control with Memory And Defogging Relay Control for Bathroom Lighting
Option Mode
● ON/OFF/CCT: when blocking time more than 0.5 seconds, enter infinity CCT dimmer (0%-100%)
● Switch function: Wave once to ON and twice to OFF.
● Dimmer function: When light ON, long block the sensor more than 0.5s to dim continually. Long
block this time to brighten up, and long block next time to dim.
● CCT adjustment: When light OFF, long block the sensor more than 0.5s to ON and enter CCT
adjustment mode. Long block the sensor to adjust CCT continually. The next long block will take
reverse adjustment direction compared to the previous one.
Product Features
● Memory function: Brightness and CCT when turned on will be the same as last time ON or powered on.
● Defogging relay control supported. When light ON, the defogger is ON. When light OFF, the defogger is OFF.
| Item No | AEK120-IR-CCT2 |
| Output Voltage | 12V/24VDC |
| Output Current | 5A |
| Output Power | 60W/120W |
| Input Current | 5A |
| Input Voltage | 12/24VDC |
| Induction Distance | ≥5cm |
| Dimension(mm) | 107.96*43.7*15mm |
