Product Details:
|
| Item No: | AEK120-IR-CCT2 | Output Current: | 5A |
|---|---|---|---|
| Rated Voltage Range: | DC12/24V | Induction Distance: | ≥5cm |
| Output Power: | 60W/120W | Function: | ON/OFF/CCT |
| Ta: | 25-35℃ | Tc: | 45℃ |
| Dimension: | 107.96x43.7x15mm | IP Rate: | IP20 |
| Approval: | CE | ||
| High Light: | CCT ir hand wave sensor switch,5000mA ir hand wave sensor switch,CCT ir proximity switch |
||

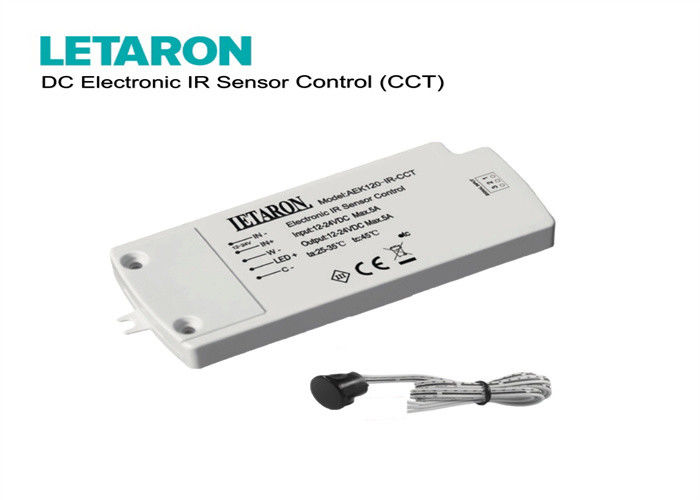

DC IR Sensor Control for CCT And Brightness Dimming for Wardrobe Lighting
Option Mode
● ON/OFF/CCT : when blocking time more than 0.5 seconds, enter infinity CCT dimmer (0%-100%)
● Switch function: Wave once to ON and twice to OFF.
● Dimmer function: When light ON, long block the sensor more than 0.5s to dim continually. Long
block this time to brighten up, and long block next time to dim.
● CCT adjustment mode. Long block the sensor to adjust CCT continually. The next long block will take
reverse adjustment direction compared to the previous one.
Product Features
● Memory function: Brightness and CCT when turned on will be the same as last time ON or powered on.
● Defogging relay control supported. When light ON, the defogger is ON. When light OFF, the defogger is OFF.
Product Specifications
| Item No. | AEK120-IR-CCT2 |
| Rated Voltage | DC12V/24V |
| Approval | TUV & CE |
| Output Current | 5000mA |
| Output Power | 60/120W |
| Dimension(mm) | 107.96*43.7*15mm |
| Induction distance | ≥5cm |
Company Introduction
Letaron Electronic Co., Ltd., was established in October, 2008 and is headquartered in Hengli Town, Dongguan City, Guangdong Province, China. We are a professional supplier of digital smart lighting solutions with 12 sales organizations around the globe.
Service: Omni-channel, global localized technical support and after-sales service
